High-Precision Five-Axis CNC Machining — Complex Geometries in a Single Setup

Simultaneous Five-Axis CNC milling for complex contours, undercuts, and multi-face features on suitable rigid metal and engineering plastic parts. Typical Five-Axis production holds ±0.01 mm on suitable rigid parts—higher precision than standard 3-axis milling delivery. ±0.005 mm is available on critical features for special drawing requirements where the material, grade, and geometry allow—confirmed via DFM before quoting. Upload your 2D/3D CAD for a free DFM review and a quote within 24 hours.

  • ✓
    Simultaneous Five-Axis CNC: Single-setup machining for complex contours, undercuts, and multi-face features on suitable rigid parts.
  • ✓
    Tight Tolerances — DFM Confirmed: Typical Five-Axis production: ±0.01 mm on suitable rigid parts. ±0.005 mm on critical features for special requirements—per drawing, confirmed via DFM before quoting.
  • ✓
    Inspection & 24-Hr Quote: 100% in-house pre-shipment inspection. Optional FAI. Free DFM review and quote within 24 hours of CAD upload.
Upload Design Fast response within 24 hours

Unlock Complex Geometries with Five-Axis CNC Machining

Stop sacrificing design complexity for manufacturability. Our Five-Axis CNC machining centers enable single-setup production of intricate structural, automotive, and industrial components. Fewer setups help reduce fixture-related variation, shorten lead times, and maintain consistent dimensional control — tolerances confirmed via DFM.

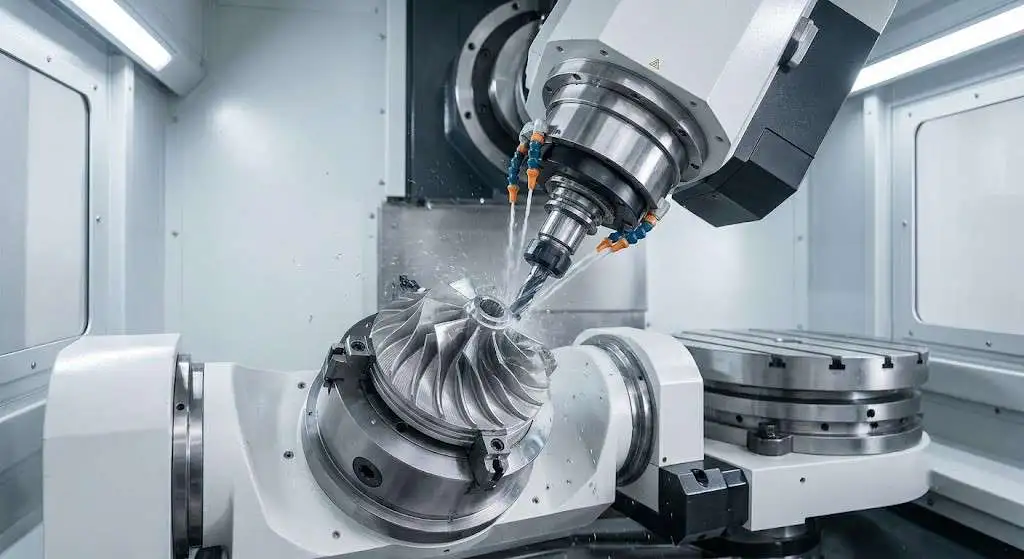

Advanced 5-axis CNC machining center precision milling a complex metal impeller component.

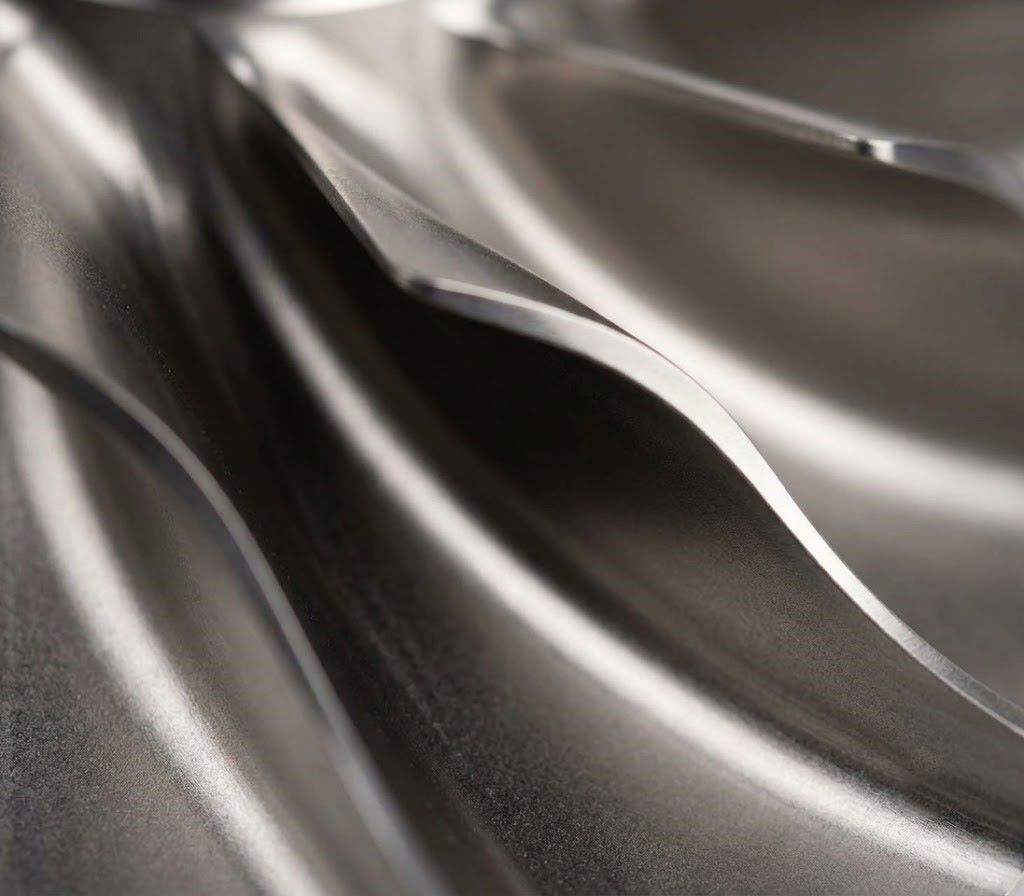

Close-up of a 5-axis machined aerospace part showing flawless thin-wall deformation control and chatter-free surface.

Overcoming the Toughest Challenges in Five-Axis CNC Machining

  • Thin-wall deformation control for lightweight aerospace parts.
  • Eliminating cutter chatter marks on high-hardness materials such as Titanium and Inconel.
  • Preventing tool collision and interference in ultra-complex multi-axis programming.

Five‑axis CNC surface finishing

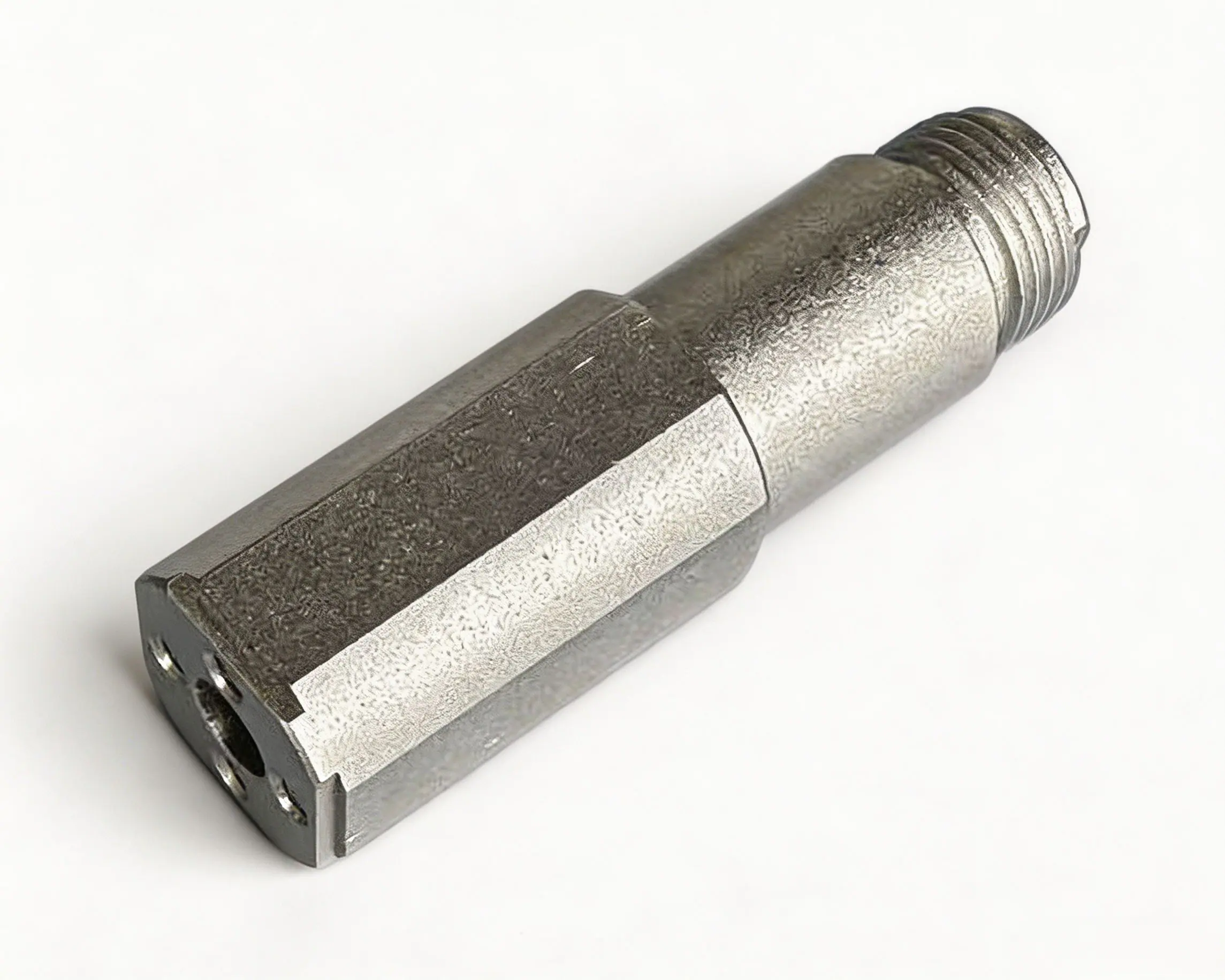

CNC machined 7075 aluminum part with bead blasting and clear anodized surface finish.

7075 & 6061 Aluminum

Bead Blasting, Type II/III Anodizing (Clear & Color), Hard Coat, and Chemical Conversion Coating.

Precision machined POM component with excellent dimensional stability

POM (Delrin)

High stiffness and extraordinary dimensional stability under stress. The ultimate engineering plastic for precision-machined gears, sliders, bushings, bearings, and impact-resistant wear guide rails.

CNC machined phosphor bronze and copper parts with electroplating and mirror buffing.

Phosphor Bronze & Copper

Passivation, Electroplating (Gold/Silver/Nickel), Anti-Oxidation Treatment, and Mirror Buffing.

Multi-Process Integration & High-Precision Assembly Services

We go far beyond standalone 5-axis milling. At Zonclair, we specialize in Precision Assembly & Multi-Process Integration, seamlessly combining cross-process machining with complex mechanical hardware installation to deliver ready-to-use, multi-component sub-assemblies.

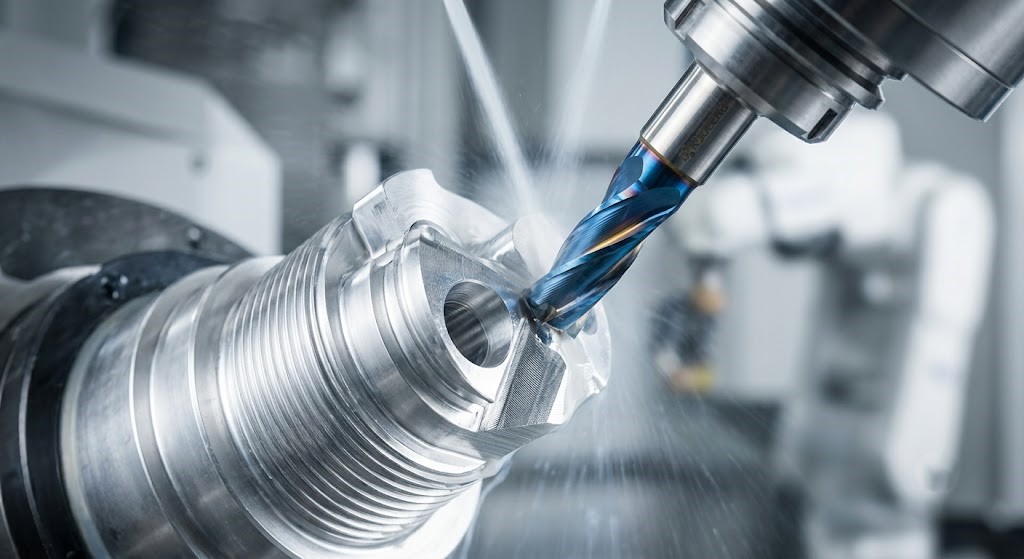

Simultaneous 5-axis milling machine and precision Swiss turning process on a metal component.

Cross-Process Synergy

Complex assemblies require perfect matching. By synchronizing 5-axis cutting, high-speed Swiss turning, and ultra-precise wire EDM under one roof, we reduce multi-vendor coordination and support consistent concentricity and positional control across mating components — verified per your drawing and agreed inspection scope.

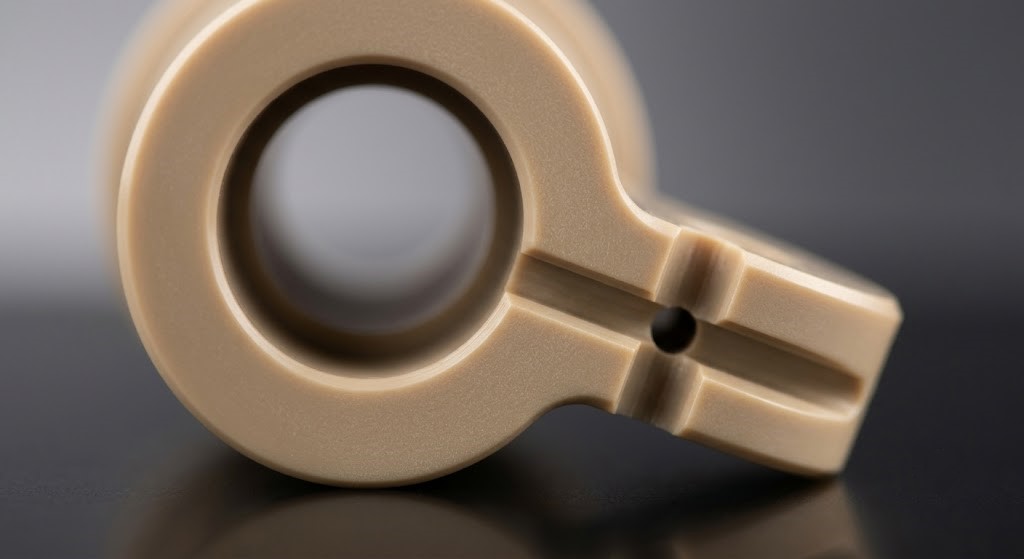

Precision machined tan PEEK engineering plastic component with complex multi-material joint

Multi-Material Dimensional Stability

Precision assemblies often blend metals with engineering plastics. We deploy advanced stress-relieving protocols to conquer internal stress and thermal deformation, ensuring that complex multi-material joints (e.g., Titanium to PEEK) fit together perfectly under any operating environment.

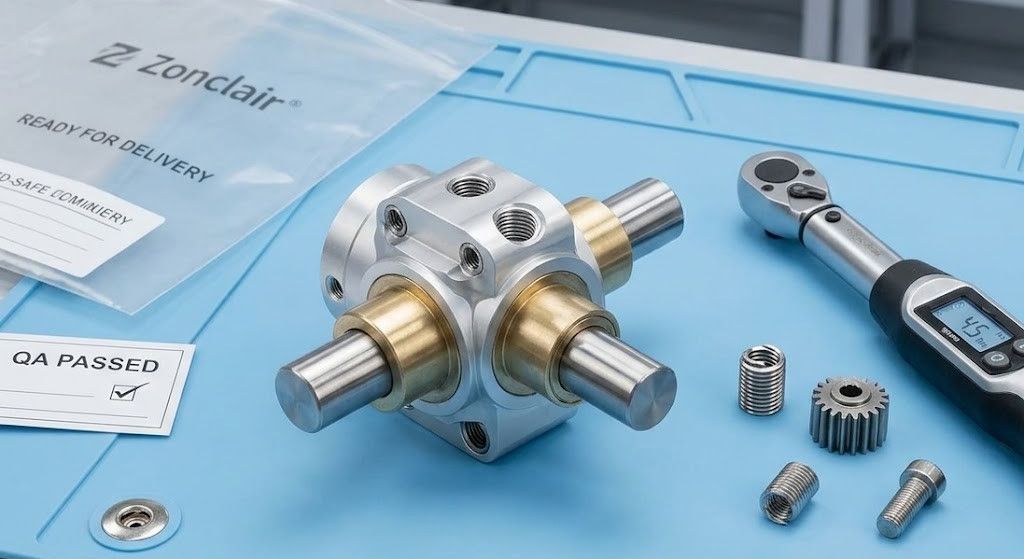

Complete mechanical sub-assembly on a blue workbench with precision tools and Zonclair QA passed certificate.

Turnkey Precision Assembly & Integration

Your complete single-source manufacturing solution. We handle the entire backend workflow: from manual microscopic deburring and ultrasonic cleaning to custom hardware installation (helicoils, dowel pins, bearings) and full multi-component mechanical sub-assembly, delivering finished modules directly to your production line.

How Zonclair Delivers Flawless 5-Axis Parts

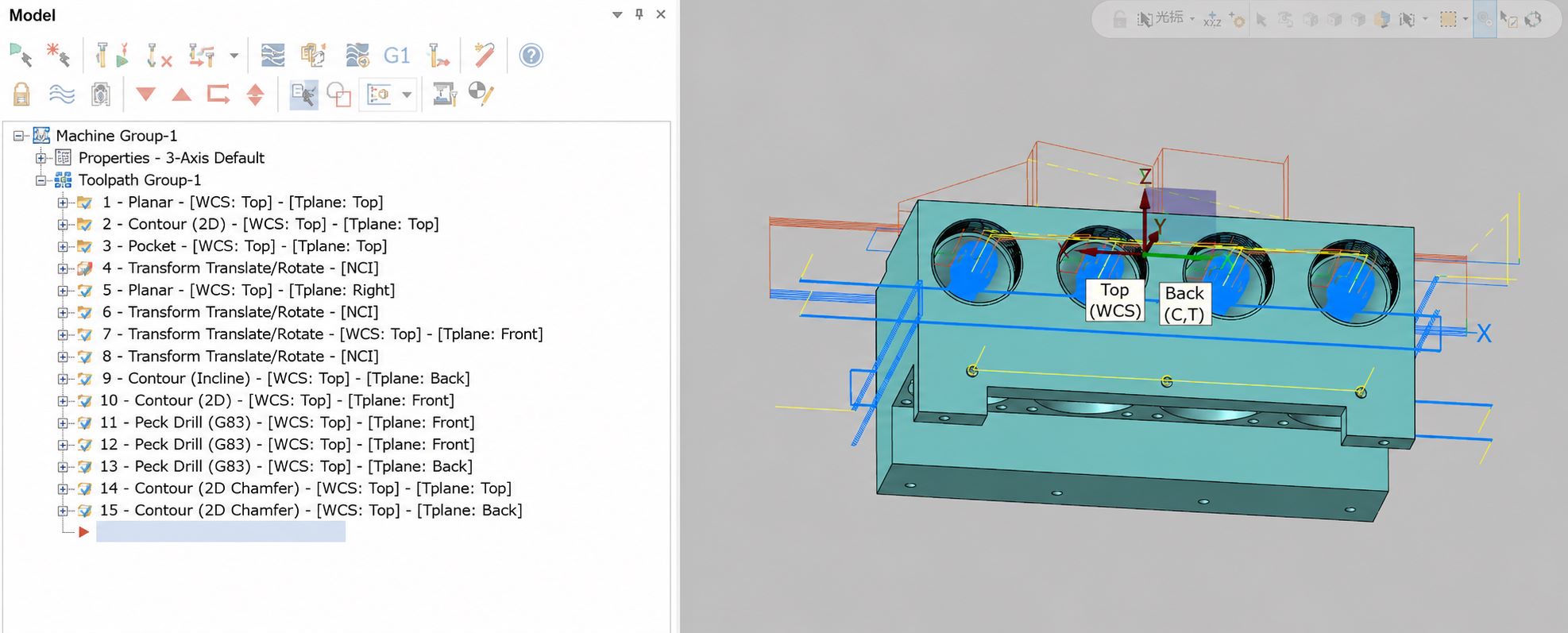

Mastercam CNC programming and multi-axis toolpath optimization for advanced 5-axis milling.

Advanced Programming

Experienced CAM programmers utilize industry-standard 5-axis strategies to reduce cycle times and maximize surface consistency on complex parts

Rigid Machine Tools

Utilizing premium high-speed spindles to ensure zero thermal displacement during long-run machining.

Strict Metrology

Every batch is verified using CMM and laser scanning, accompanied by full material & dimension reports.

Multi-Industry Five-Axis CNC Machining Applications

Our advanced five-axis CNC machining capabilities deliver critical, high-tolerance components across diverse demanding sectors. We offer certified manufacturing solutions for aerospace structural elements, intricate automotive impellers, complex medical device prototypes, and heavy-duty energy industry parts. No matter your industry, our single-setup multi-axis milling ensures unmatched geometric compliance.

Why Leading Engineers Partner with Zonclair

Rapid Response

Receive DFM (Design for Manufacturability) feedback and pricing within 24 hours of file upload.

Quality & Inspection

100% in-house pre-shipment inspection against your drawing requirements. Non-conformances are reviewed under our documented quality process — scope and remedies confirmed at order acceptance and DFM review.

Turnkey Capability

From raw blocks of 7075-T6 to anodizing, passivation, or laser etching—all completed under one roof.
